Introduction

Near-Infrared (NIR) images have broad application in remote sensing and surveillance for its capacity to segment images according to object’s material. Although NIR images made object detection an easier task, its monochrome nature is conflicted with human visual perception and thus might not be user friendly. Lack of color discrimination or wrong colors on NIR images would limit people’s understanding and even lead to wrong judgement. So colorizing the grayscale NIR images would be desired.

Colorization of NIR images is a difficult and challenging task since a single channel is mapped into a three dimensional space with unknown interchannel correlation, which greatly reduces the effectiveness of using traditional color correction/transfer method to solve this problem. Moreover, since surface reflection in the NIR spectrum band is material dependent, some objects might be missing from the NIR scenes due to their transparency to NIR. Therefore, different from grayscale image colorization which only estimates chrominance, IR colorization requires estimating not only the chrominance, but also the illuminance, which add a lot complexity to the problem.

In this project, we proposed several machine learning solutions like L3 (Local, Linear and Learned) and a neural network based model to find the appropriate mapping from NIR to RGB visible spectrum representation which human eyes are more sensitive to. The results are evaluated by CIELAB ∆E and MSE.

Method

CNN Method

Due to the great performance of CNN models in image classification tasks [1], we propose an integrated approach based on deep-learning techniques to perform a spectral transfer of NIR to RGB images. As inspired by Matthias et al. [2], a Convolutional Neural Network (CNN) is applied to directly estimate the RGB representation from a normalized NIR image. Then the colorized raw output of CNN model would go through an edge enhancement filter to transfer details from the high resolution IR input image and obtain better image quality.

Dataset

A deep CNN model might have thousands or even millions of trainable variables, so a large amount of data is required to prevent overfitting, where the model perfectly fits the training data set but loses the ability to inference the spectrum transfer on a new IR image. We use the RGB-NIR Scene Dataset [3] which consists of 477 images in 9 categories captured in RGB and Near-infrared (NIR).

Example NIR image of Urban Building

Example RGB image of Urban Building

Based on promising result of single category training in L3, we used one category data that consists of 102 high resolution Urban Building images in our CNN model. All the images are split into 4/5 training data and 1/5 test data and then cropped into a 64 * 64 patches to feed into the CNN model.

Number of 64 * 64 Patches used in CNN Model
Data Type/ Data Use	Train	Test
Input IR (64 * 64)	7572	7572
Output RGB (64 * 64 * 3)	1044	1044

CNN Architecture

A recent trend for CNNs is the usage of many convo- lution layers with small convolution kernels and relatively few pooling layers. This increases the total amount of non- linearities in the network. The model consists of nc convolution layers and np max-pooling layers. The pooling layers are distributed between the convolution layers so that each convolution layer block has the same amount of convolution layers. The activation function of the convolution layers is the ReLU function: ReLU(x) = max(0,x). Batch normalization is added after each relu.

Stochastic gradient descent using the backpropagation algorithm [30] is performed to minimize the mean squared error (MSE) between the pixel estimates F (p′i , Θ) of the ith normalized pixel p′i and the corresponding pixels qi of the mean filtered RGB image Tμ:

CNN Model Architecture

Loss Function

Since the input and output of the neural network were sensor voltage values, mean squared error was calculated between the known high resolution sensor voltage data generated by ISETCAM and the output generated by the neural network, which can be defined as:

$\mathrm{MSE}=\frac{1}{n}\sum _{i=1}^n(Y_i-\widehat{Y_i}{)}^2.$

While numerous loss functions exist, mean squared error was chosen due to its simplicity in understanding and ease of calculation. We must acknowledge however mean squared error does not factor in any elements of how a human would compare two images, which include sharpness, noise, dynamic range, color difference, illumination, etc. of which some will be discussed in the results section.

Post Processing

The raw output of the inference step Eμ shows visible noise, caused by inaccurate pixel-wise estimations. The subsampling property of the pooling layers combined with the correlation property of the convolution layers amplify this effect. For a network, which contains three 2 × 2 pooling layers, the coherence gap is sπ = 23 = 8 in both image dimensions. Postprocessing is necessary to remove this incoherence and recover the lost details. [reference]

In the postprocessing step, the filtered image is augmented by the high frequency details Ih from the input image to produce the final colorized image. In the result section, you could see that compared to the raw output Eμ, object contours and edges are clearly visible, but the textures of the surfaces are still missing. By using the detail component of the input image Ih, textures and resolution can be partially recovered.

Image + formular + reference

Results

CNN

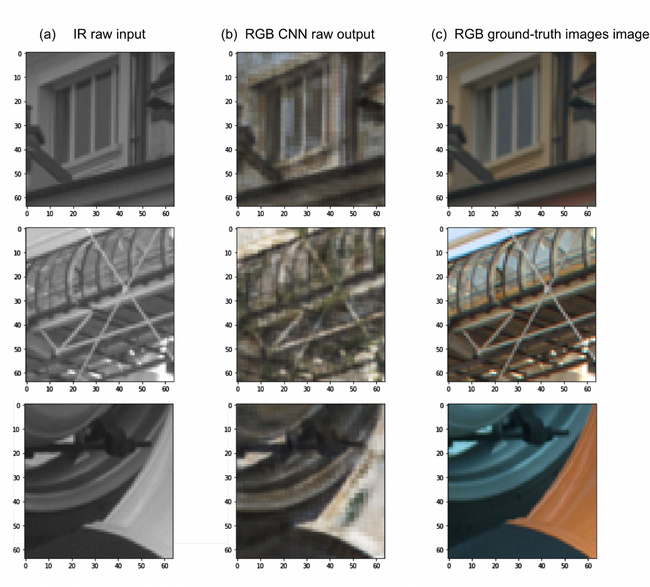

CNN model result

To compare our result with the ground truth RGB images, we used CIELAB ΔE metric to measure difference in human perception level and MSE metric to quantitatively measure pixels differences across image. The training has lasted 1000 epoch in Nvdia GPU, using CUDA Toolkit 9.0 [4]. The following images gives the results for both train and test set colorization.

(1) Train set results

     MSE = 0.119

blue: Output RGB values v.s. Target RGB of Example Train image; orange: true line

(2) Test set result

   MSE = 0.0134

blue: Output RGB values v.s. Target RGB of Example Train image; orange: true line

Guided Filter result

Guide Filter

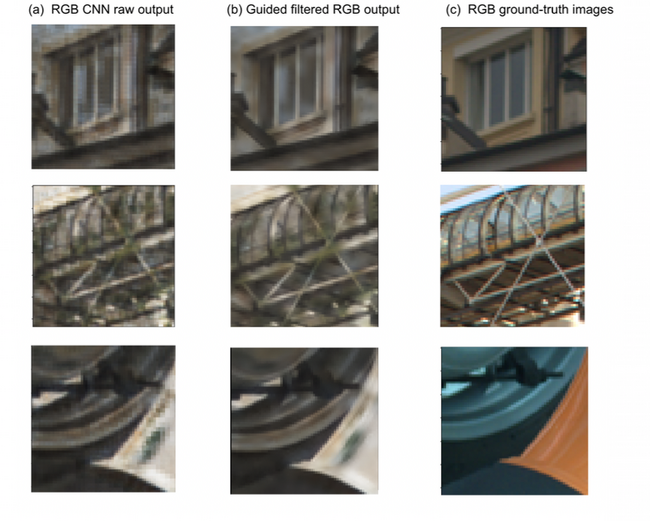

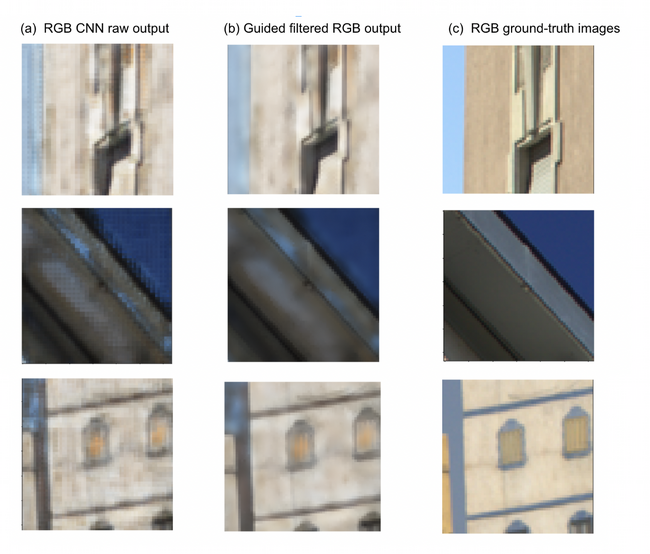

CNN Final result

(1) Train set

(2) Test set
